YYC精密直齿齿条 CSTMH-JIS5

特征

Introduction

联系我们

产品详情

1st	2nd	3rd	4th	5th	6th	7th	8th
材料 Material	齒型 Type	棒型 Shape	齒面處理 Teeth Treatment	硬度處理 Hardness	模數 Module	長度 Length	等級 Grade
C	S	T	G	H	020	10	DIN JIS
C= 中碳鋼 M= 合金鋼	S= 直齒 H= 斜齒	T= 四角棒	M= 精铣 G= 齒研	Q= 調質 H= 硬化處理	M1.5~M10	05=500mm 10=1000mm 15=1500mm 20=2000mm	DIN 5-10 JIS 1-5
C= Carbon Steel =S50C M=Alloy Steel =SCM440	S=Straight H=Helical	T=Tetragon	M=Milled G=Ground	H=Hardened Q=Quenched &Tempered	M1.5~M10	05=500mm 10=1000mm 15=1500mm 20=2000mm	DIN 5-10 JIS 1-5
備註：長度、鑽孔、材質、表面處理 ( 噴砂、磷酸鹽、染黑、研磨 ) 等特殊需求，皆可客製。
Remarks: Lengths, holes,materials,surface treaments (sandblasted, phosphated,Black-coated, sides ground) and other requirements all could be customized.

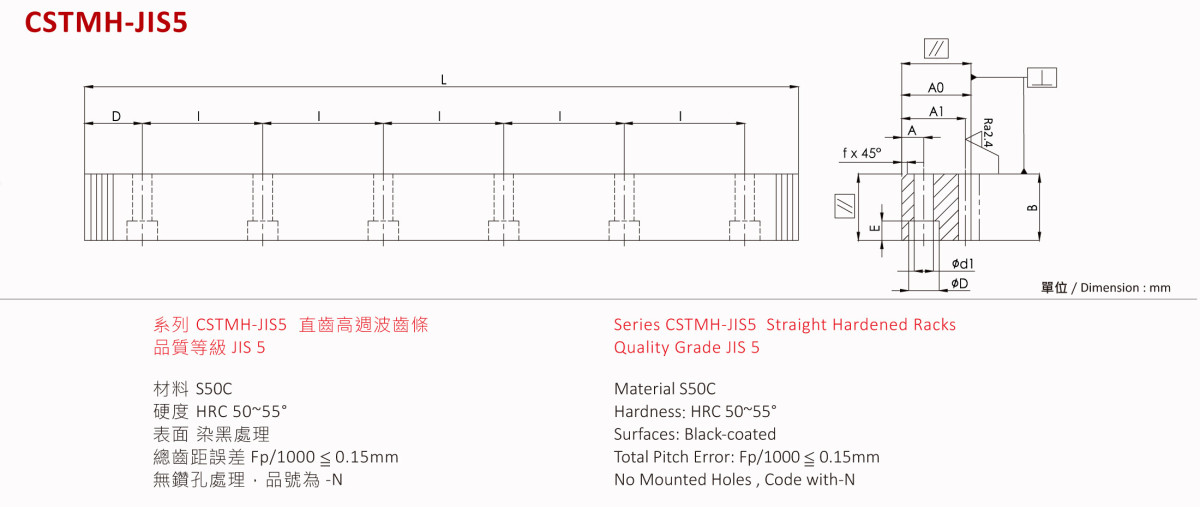

型號 Code	模數 Module	L	齒數 No. of Teeth	B	A0	A1	D	I	孔數 No. of Holes	螺丝Screw	A	φd1	φD	E	f	Fta KN	KG
CSTMH01510-JIS5	1.5	999.03	212	15	20	18.5	49.51	180	6	M5	8	6	10	6	1.5	1.87	2.1
CSTMH01510-JIS5-N	1.5	999.03	212	15	20	18.5	*	*	*	*	*	*	*	*	1.5	1.87	2.1
CSTMH01511-JIS5	1.5	999.03	212	15	15	13.5	49.51	180	6	M5	5	6	10	5	1.5	1.87	1.6
CSTMH01511-JIS5-N	1.5	999.03	212	15	15	13.5	*	*	*	*	*	*	*	*	1.5	1.87	1.6
CSTMH01520-JIS5	1.5	2049.88	435	15	20	18.5	34.94	180	12	M5	8	6	10	6	1.5	1.87	4.4
CSTMH01520-JIS5-N	1.5	2049.88	435	15	20	18.5	*	*	*	*	*	*	*	*	1.5	1.87	4.4
CSTMH01521-JIS5	1.5	2049.88	435	15	15	13.5	34.94	180	12	M5	5	6	10	5	1.5	1.87	3.3
CSTMH01521-JIS5-N	1.5	2049.88	435	15	15	13.5	*	*	*	*	*	*	*	*	1.5	1.87	3.3
CSTMH02010-JIS5	2	1005.31	160	20	25	23	52.65	180	6	M6	10	7	11	7	2	3.33	3.6
CSTMH02010-JIS5-N	2	1005.31	160	20	25	23	*	*	*	*	*	*	*	*	2	3.33	3.6
CSTMH02011-JIS5	2	1005.31	160	20	20	18	52.65	180	6	M6	7	7	11	7	2	3.33	2.9
CSTMH02011-JIS5-N	2	1005.31	160	20	20	18	*	*	*	*	*	*	*	*	2	3.33	2.9
CSTMH02020-JIS5	2	2048.31	326	20	25	23	34.15	180	12	M6	10	7	11	7	2	3.33	7.3
CSTMH02020-JIS5-N	2	2048.31	326	20	25	23	*	*	*	*	*	*	*	*	2	3.33	7.3
CSTMH02021-JIS5	2	2048.31	326	20	20	18	34.15	180	12	M6	7	7	11	7	2	3.33	5.8
CSTMH02021-JIS5-N	2	2048.31	326	20	20	18	*	*	*	*	*	*	*	*	2	3.33	5.8
CSTMH02510-JIS5	2.5	1005.31	128	25	30	27.5	52.65	180	6	M8	12	9	14	8.6	2	5.20	5.4
CSTMH02510-JIS5-N	2.5	1005.31	128	25	30	27.5	*	*	*	*	*	*	*	*	2	5.20	5.4
CSTMH02511-JIS5	2.5	1005.31	128	25	25	22.5	52.65	180	6	M8	9	9	14	8.6	2	5.20	4.5
CSTMH02511-JIS5-N	2.5	1005.31	128	25	25	22.5	*	*	*	*	*	*	*	*	2	5.20	4.5
CSTMH02520-JIS5	2.5	2049.88	261	25	30	27.5	34.94	180	12	M8	12	9	14	8.6	2	5.20	10.9
CSTMH02520-JIS5-N	2.5	2049.88	261	25	30	27.5	*	*	*	*	*	*	*	*	2	5.20	10.9
CSTMH02521-JIS5	2.5	2049.88	261	25	25	22.5	34.94	180	12	M8	9	9	14	8.6	2	5.20	9.1
CSTMH02521-JIS5-N	2.5	2049.88	261	25	25	22.5	*	*	*	*	*	*	*	*	2	5.20	9.1
CSTM03010-JIS4	3	999.03	106	30	35	32	49.51	180	6	M10	14	11	17.5	10.8	2	7.49	7.5
CSTMH03010-JIS5-N	3	999.03	106	30	35	32	*	*	*	*	*	*	*	*	2	7.49	7.5
CSTMH03011-JIS5	3	999.03	106	30	30	27	49.51	180	6	M10	11	11	17.5	10.8	2	7.49	6.4
CSTMH03011-JIS5-N	3	999.03	106	30	30	27	*	*	*	*	*	*	*	*	2	7.49	6.4
CSTMH03020-JIS5	3	2045.17	217	30	35	32	32.58	180	12	M10	14	11	17.5	10.8	2	7.49	15.3
CSTMH03020-JIS5-N	3	2045.17	217	30	35	32	*	*	*	*	*	*	*	*	2	7.49	15.3
CSTMH03021-JIS5	3	2045.17	217	30	30	27	32.58	180	12	M10	11	11	17.5	10.8	2	7.49	13.1
CSTMH03021-JIS5-N	3	2045.17	217	30	30	27	*	*	*	*	*	*	*	*	2	7.49	13.1
CSTMH04010-JIS5	4	1005.31	80	40	45	41	52.65	180	6	M12	18	14	20	13	2	13.32	12.9
CSTMH04010-JIS5-N	4	1005.31	80	40	45	41	*	*	*	*	*	*	*	*	2	13.32	12.9
CSTMH04011-JIS5	4	1005.31	80	40	40	36	52.65	180	6	M12	15	14	20	13	2	13.32	11.4
CSTMH04011-JIS5-N	4	1005.31	80	40	40	36	*	*	*	*	*	*	*	*	2	13.32	11.4
CSTMH04020-JIS5	4	2048.31	163	40	45	41	34.15	180	12	M12	15	14	20	13	2	13.32	26.2
CSTMH04020-JIS5-N	4	2048.31	163	40	45	41	*	*	*	*	*	*	*	*	2	13.32	26.2
CSTMH04021-JIS5	4	2048.31	163	40	40	41	34.15	180	12	M12	18	14	20	13	2	13.32	23.3
CSTMH04021-JIS5-N	4	2048.31	163	40	40	41	*	*	*	*	*	*	*	*	2	13.32	23.3
CSTMH05010-JIS5	5	1005.31	64	50	50	45	62.65	220	5	M14	20	16	23	15.2	3	20.81	17.9
CSTMH05010-JIS5-N	5	1005.31	64	50	50	45	*	*	*	*	*	*	*	*	3	20.81	17.9
CSTMH05020-JIS5	5	2042.04	130	50	50	45	31.02	220	10	M14	20	16	23	15.2	3	20.81	36.3
CSTMH05020-JIS5-N	5	2042.04	130	50	50	45	*	*	*	*	*	*	*	*	3	20.81	36.3
CSTMH06010-JIS5	6	999.03	53	60	60	54	59.51	220	5	M16	23	18	26	17.5	3	29.97	25.5
CSTMH06010-JIS5-N	6	999.03	53	60	60	54	*	*	*	*	*	*	*	*	3	29.97	25.5
CSTMH06020-JIS5	6	2035.75	108	60	60	54	27.88	220	10	M16	23	18	26	17.5	3	29.97	52.1
CSTMH06020-JIS5-N	6	2035.75	108	60	60	54	*	*	*	*	*	*	*	*	3	29.97	52.1
